Network Graph using Python

This code snippet demonstrates how to create and visualize a simple network graph using the networkx and matplotlib libraries in Python.

Explanation

Importing Libraries

• import networkx as nx import matplotlib.pyplot as plt
• network is imported as nx, which is a library for creating, analyzing, and visualizing networks (graphs).
• matplotlib.pyplot is imported as plt for plotting and visualizing the graph.

Creating a Graph Object

• G = nx.Graph()
• nx.Graph() initializes an undirected graph object G that will hold nodes and edges.

Adding Nodes

• G.add_nodes_from(["A", "B", "C", "D", "E"])
• G.add_nodes_from(...) adds multiple nodes to the graph. Here, nodes labeled "A", "B", "C", "D", and "E" are added.

Adding Edges

• edges = [("A", "B"), ("A", "C"), ("B", "C"), ("B", "D"), ("C", "E")] G.add_edges_from(edges)
• edges is a list of tuples, where each tuple represents an edge (connection) between two nodes.
• G.add_edges_from(edges) adds these edges to the graph.

Plotting the Graph

• plt.figure(figsize=(8, 6))
• plt.figure(figsize=(8, 6)) sets the size of the plot to 8x6 inches.
• nx.draw(G, with_labels=True, node_color="yellow", node_size=1000, edge_color="red", font_size=16, font_weight="bold")
• nx.draw(...) visualizes the graph with various style options:
• with_labels=True displays node labels.
• node_color="yellow" makes the nodes yellow.
• node_size=1000 sets the size of each node.
• edge_color="red" makes the edges red.
• font_size=16 and font_weight="bold" adjust the font size and weight for labels.
• plt.title("Network Graph using Python") plt.show()
• plt.title("Network Graph using Python") adds a title to the plot.
• plt.show() displays the graph.

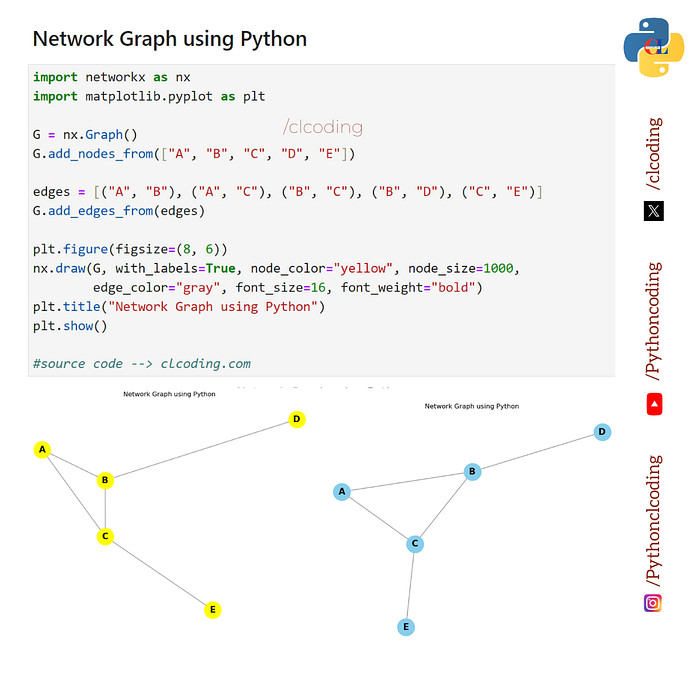

This will produce a network graph with labeled, yellow nodes connected by red edges.
